Techege 1080P HD Surveillance Cameras Waterproof Outdoor Security Solar Battery Charge Camera WIFI Cameras Audio PIR Motion

Regular price $147.68 USD
Shipping calculated at checkout. USD

Remote viewing what’s going on in your home on your phone, tablet PC or laptop.

Item specifics
  • Brand Name:Techege
  • Style:Bullet Camera
  • High Definition:1080P(Full-HD)
  • Connectivity:WiFi
  • Lens (mm):2.8mm
  • Supported Operating Systems:No
  • Model Number:TYN01-20
  • Sensor:CMOS
  • Technology:Infrared
  • Special Features:Waterproof / Weatherproof
  • Supported Mobile Systems:Android,ios
  • Power Consumption(W):<5W
  • Alarm Action:Local Alarm
  • Power Supply(V):DC 5V
  • Network Interface:Wi-Fi/802.11/b/g

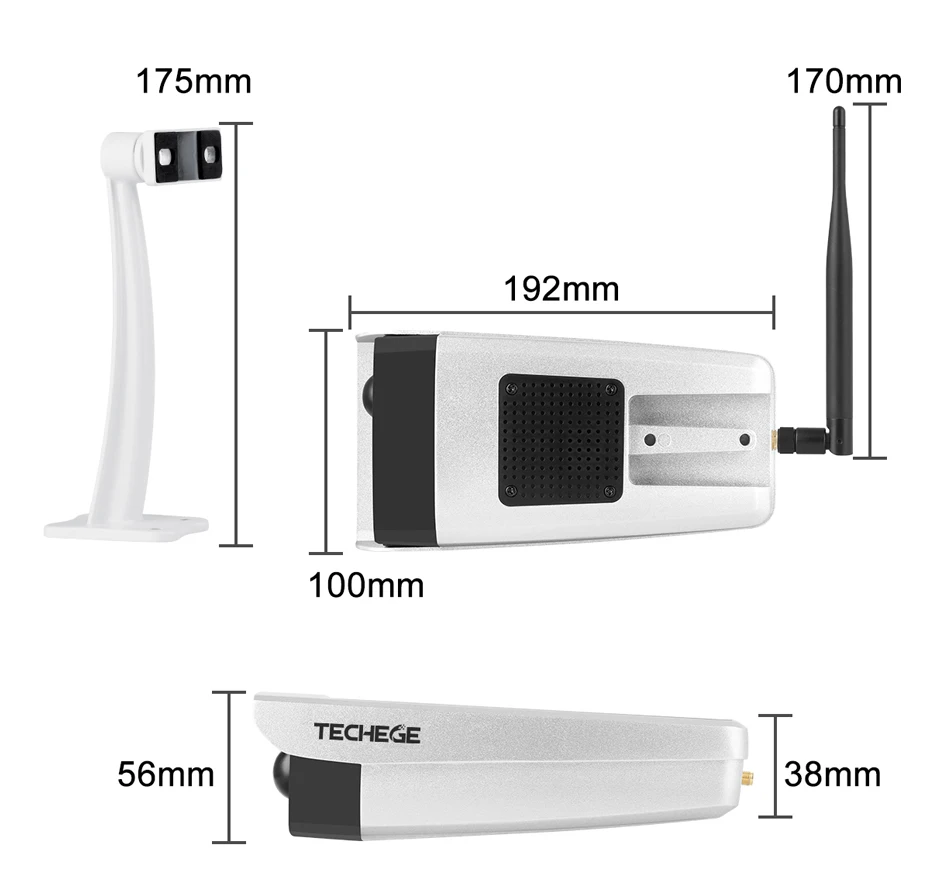

  • Dimensions (L x W x D)(mm):as picture
  • IR Distance(m):up to 30M
  • Video Compression Format:H.264
  • Viewing Angle (Degree):90°
  • Minimum Illumination(Lux):0.1 Lux
  • is_customized:Yes
  • Wall Bracket:Side
  • Installation:Embedded
  • Storage:None
  • TF Card:None
  • Pixel:2MP
  • Type:Wifi camera
  • Audio Output:Two way audio, Audio Recording
  • Color:silver
  • Power Supply:Power or Solar Charge
  • Storage:Max 64GB Micro SD card (Not included)
  • Video Resolution:1920*1080p
  • camera functions:P2P, Wifi, Night Vision
  • Alarm system:PIR Motion Detection/APP push
  • Remote Viewing:MicroShare for IOS and Android
  • Infrared:8PCS IR LED With 0-30M IR Distance
  • Housing Material:aluminum alloy, waterproof IP66
  • Camera Feature:Power or Solar Charge
  • Audio input:built-in MIC
  • Audio output:built-in speaker
Product Description
Solar wifi camera is more Advantages than ordinary wifi cameras:
camera has built-in battery(Rechargeable battery, long standby) , it can be use interface power charge + solar power supply, don't need worried camera no power, don't need wiring.
Scan QR-code to add this device, just need 3-seconds,so easy installation.

Package Included:
1 x solar surveillance wifi camera 1080P(built-in
7650 mAh lithium battery)

1 x wifi antenna
1 x camera bracket
1 x installation bags
1 x power cord
1 x reset needle
1 x camera quick operation manual

Orders over 2pcs from China, please separate into several orders due to Aliexpress Shipping Limitation. If any extra fee caused by this, please contact us for solution. Thanks.




Note :  The APP MicroShare is free ,but it needs extra cost for cloud storage

            If you take cloud storage,then no need to put the SD card :)

Product specifications
Material: aluminum alloy
Color: silver
Image sensor: 2 million pixel CMOS
Infrared light: built-in 8 infrared lights
Lens: 2.8MM HD lens
Video mode: HD / SD
( please turn it to HD status to best view)
Image resolution: 1920x1080
Audio input: built-in MIC
Audio output: built-in speaker
Wireless network: 2.4GZIEEE 802.11B/G/N,
don't support 5Ghz wireless network!
Storage function: support MICRO SD card storage, 8-64G(Product does not contain card).
Intelligent alarm: PIR human body induction
Battery: 7650 mAh lithium battery

Stand by Time: max 5-months(sleep status)

Charging method: solar power supply; plug in the power supply

Working environment: -20 ° C ~ 60 ° C / 20% ~ 85% (non-condensing)
Waterproof rating: IP66

Great Cloud Service(Cloud Record, Auto Motion Video upload to cloud)

- Suitable for indoor or outdoor use.
- Prevent theft, robbery and vandalism in your home or business.
- Wall mount brackets and fixtures.
- Easy and quick to install - no wiring required.
- Can be used indoors and outdoors, for homes, shops, commercials, garages.
- Support for local memory card storage up to 64G micro SD card.
- HD 1280 * 720P video recording, making the image clear and missing no details.
- Built-in microphone and speaker for two  way intercom in the app, speaker and hear each other, perfect for taking care of you and the elderly.
-No need to connect to professional CCTV software
-No need to set up ftp server


this camera don't support view through Computer



- Product details may vary due to different production batches. If you care about it, please buy it carefully.
- Please allow 1-3CM size to differ due to manual measurement.
- Due to different displays and different lighting, the image may not reflect the actual color of the project. Thank you for your understanding.

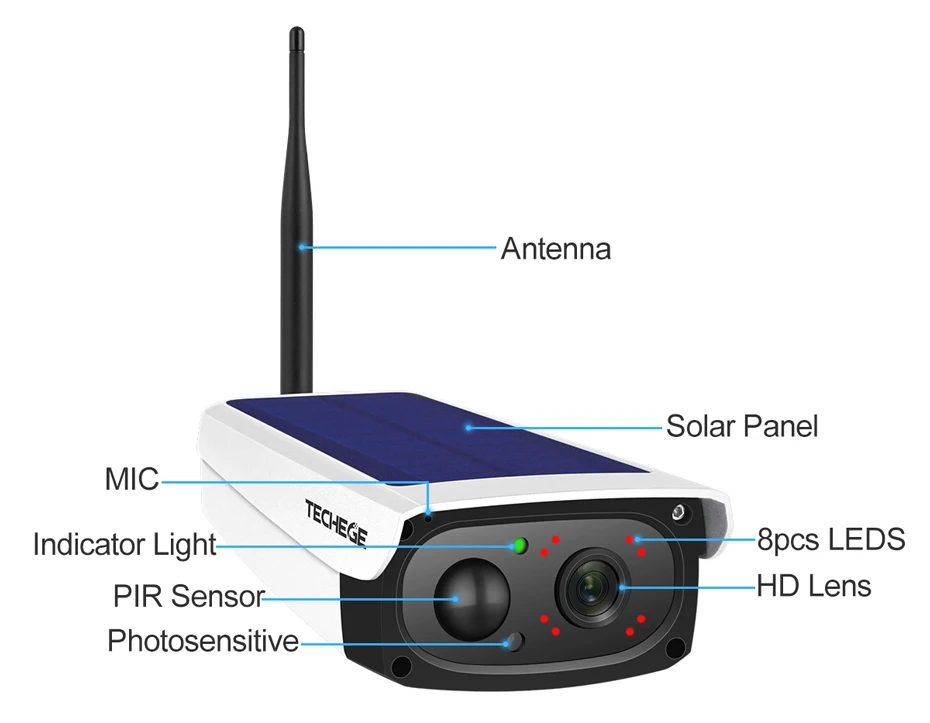

Main Functions



Device functions introduction
1. Low power warning:
you should charge when get tow power prompts please use the original charger we provide.
2. PIR Alarm and video function :
When the device connect to home WiFi successfully, the device is in sleep state.
maintaining low power standby. it Will be waked up according to your PIR sensitivity setting . Someone is in the range ot effective visual angle ot equipment activities,
the PIR alarm push the alarm information to the app,and you can push the alarm informatton through the app. The the device has inserted SD Card. the device Will be synchroronized to turn the recording functions.
3. Wake-up remotery
The devices in sleep status.and you can open app of phone. then press the main screen to wake-up the device remotely .Open the monitoring screen,you can watch the scene of the real-teme scene,at the same time it can be voice intercom. image capture, local video and other operations.and you can choose a different image quality. Video playback: 1 . Enter the real-time monitoring interface. stretching the timeline below the image.and you can Choose each time period PIR alarm triggered video playback. The The time axis blue mark blue represents a video files. 2.Press the image in the upper right corner of the file the date to be quened,and press-search'.each tune can query 7 days of video can search and playback as needed.
4. Distance network video
Atter the device is configured with home WiFi. if there is no network situation. the device PIR alarm function and video function,can work normally.lf there is no network. the APP won't be gotten messages from the camera. In no network environment. PlR alarm is triggered after the video can be connected to the files can be found and play backed.

Waterproof IP66 battery + solar power supply, no wiring, maintenance-free, suitable for all kinds of inconvenient outdoor environment use, villas, community, courtyard, fish ponds, orchards, vegetable plots, outdoor pet house and so on. Sensitive PIR human body induction alarm, in the WiFi environment, you can remotely wake the device at any time

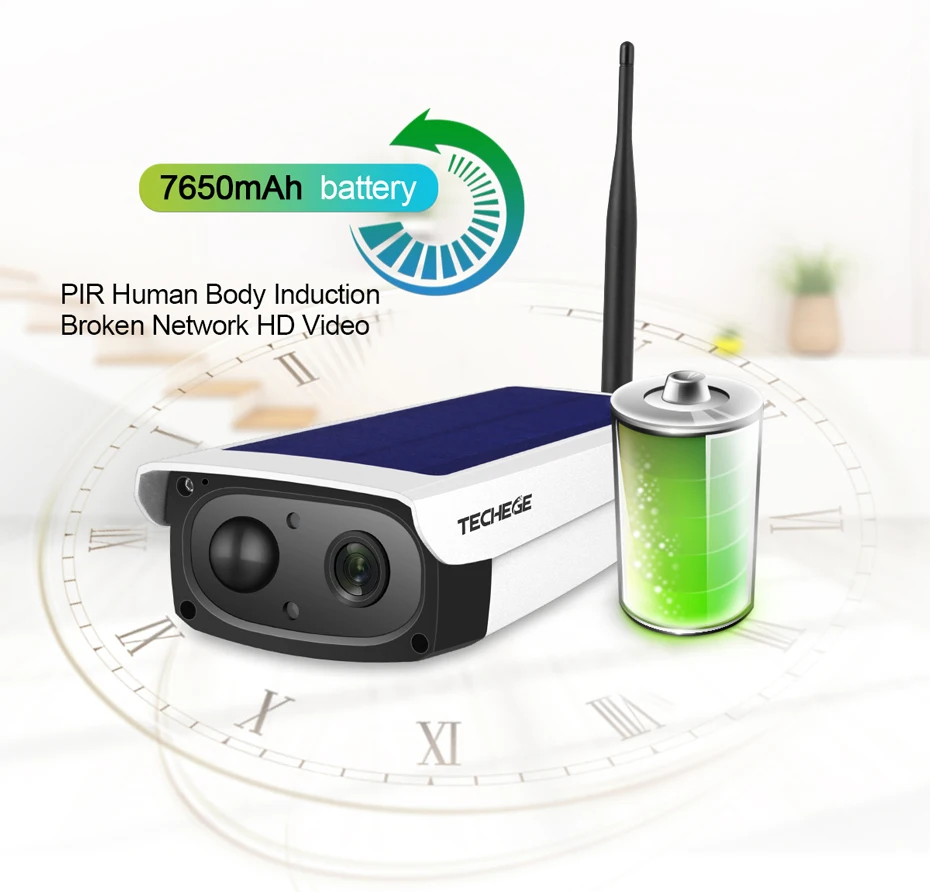

Rechargeable battery, long standby

Rechargealbe batteries, no need to buy new battery if battery is dead. Save money and environmental !

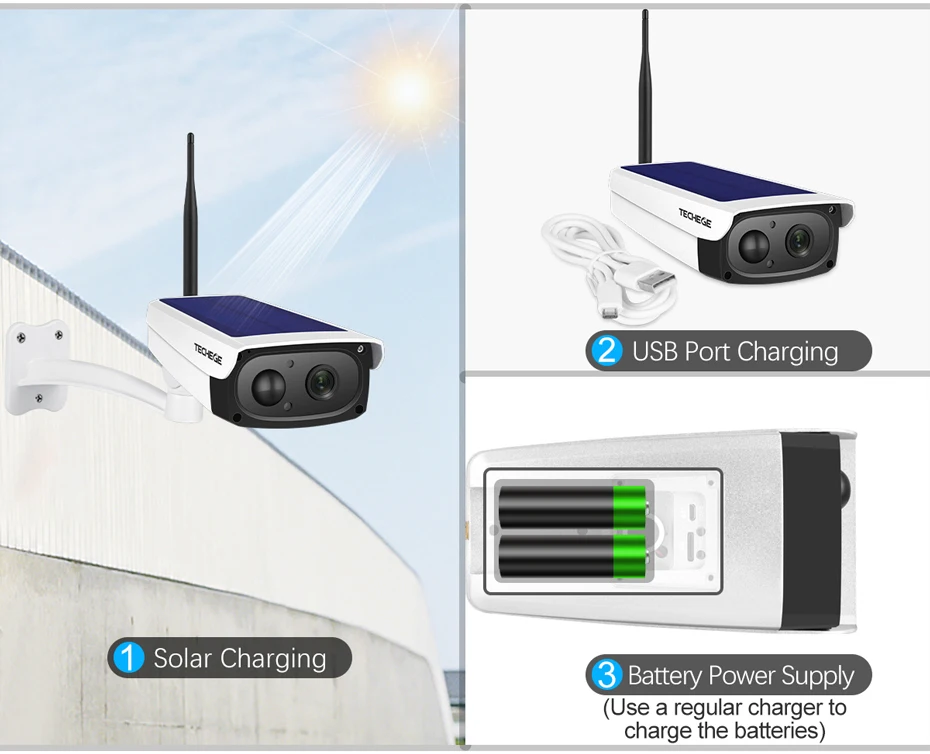

3 Ways Charge



PIR Motion Sensor-Instant & Accurate Alerts

Only detect the body temperature before sending alarm information, no human activity, the machine into hibernation1_13

Wake up operation

Click on the device interface to pull down Wake up device.


Sleep Status: No human activity, the camera does not consume battery power when it goes to sleep, but it does not affect the normal monitoring of the camera.

PIR Alarm: Support the PIR human body infrared detection.When someone lingers in the doorway, immediately send alarm information to the smartphone APP.



Two Way audio

Two Way audio Built-in microphone & speaker, support 2-way voice.

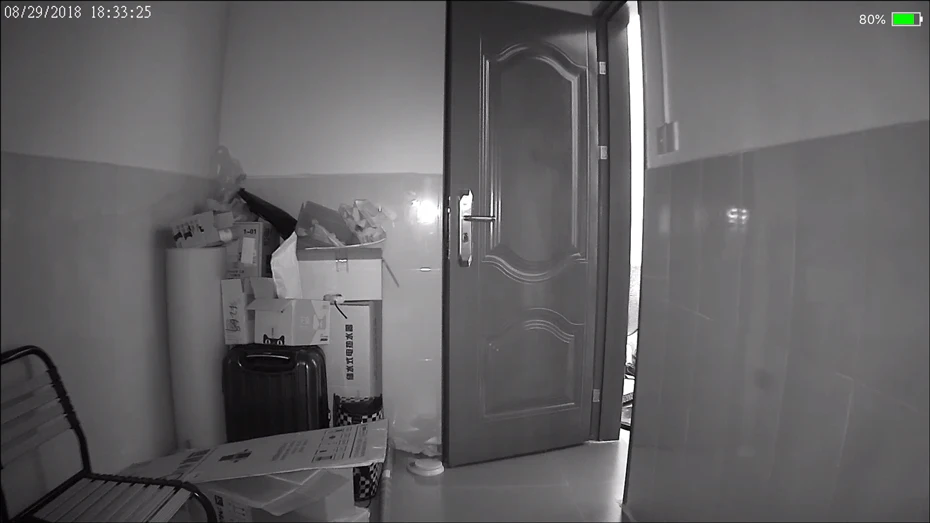

Support Night Vision up to 20m

Built in IR cut,when switch to night mode IR LED turns red and image turns B/W.



360 Degree Rotation




​Multi-User can view at the same time



Aluminum alloy, Waterproof IP66





APP Connection

Warm tips: Before seup the camera, please press the "reset button" with 5- 7 seconds to factory reset.

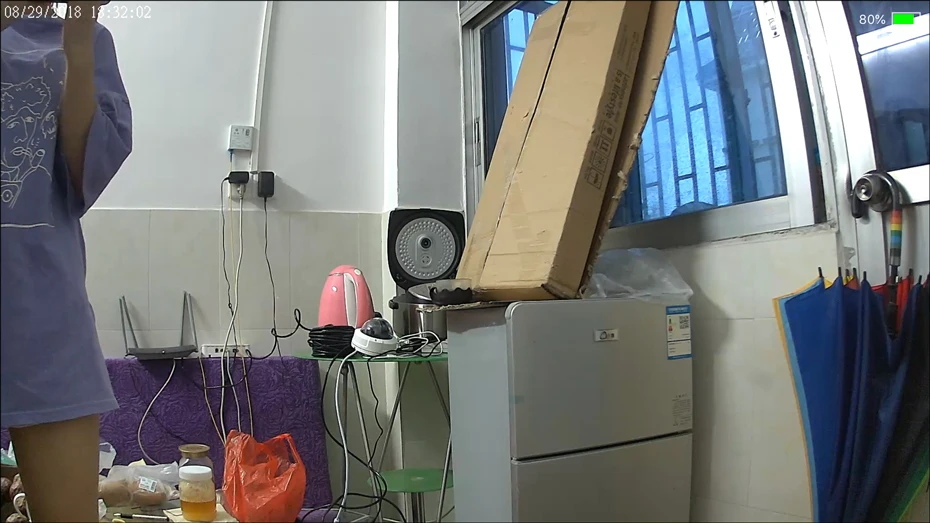

2.0MP real images show







about installation:

For using our product quickly and normally,pleasefollow the following warm tips:
1. First time use, please turn on the camera back cover, and the camera switch machine key, restorefactory key, TF card slot and USB charging interface, all in the bottom ofthe machine. After the product configures successfully, please install the rear cover, and accessories with the screws tofixed the rear cover;
2. New productsforfactory defaults, the device need to recharge when lack ofenergy. Please use 5V2A power supply to the equipment when charging; Please do not use 9v/5v adaptive power or flash,fast charging source, otherwise it will burn equipment circuit, resulting in damage to equipment, and it will not within the warranty areas;
3. Device configuration is successful, please open PIR Alarm, andfollow thefollowing angle to install orplace, can make PIR alarm in the most reasonable angle:
3/1, the camera flat put use, please place at I .4 meters--1.8 meters height, is no barrier in front;
3/2, the camera wall installed use, installation height, 2.5 meters-3.2 meters, the use of stents,fixed a good camera, keep the camera downward tilt 15degree-20degree;
3/3, in the above angle range, PIR alarm induction distance ofabout 6-8 meters.
*if for AP mode, Battery consumption is faster
Camera is unable to connect to WiFi network.
A1 : Camera is only available to 2.4G router instead of 5G router.
A2 : Please do not set hide functionality on your WiFi router,or the device will not successfully configure home WiFi
A3 : Please check whether the WiFi router runs normally or not,then confirm the DHCP router.
A4 : Please try to reset the WiFi router before configuring the device to get a better network environment.
A5 : Please follow the instructions carefully,configure your home wireless network, and don't skip any one of these steps,or it may cause the device connection failure.
1,How far is the device's PIR infrared sensor alarm?
PIR infrared,the distance and range will has different under different temperature, the distance of PIR work is within 5M.
2,The device has inserted SD card,and record video function is turn on,why still can not find video file after triggering alarm?
In the first time use SD card,you need format the SD card before the normal reading and writing.
3,What's the temperature can be normal use of the device?
Suggest temperature is -10—50 degree
